伪代码编写练习可以使用网站：http://ibcomp.fis.edu/pseudocode/pcode.html

伪代码语法

循环逻辑：

plaintext
1
2
3
4
5
6
7
loop i from ... to ...
    TODO()
end loop

loop while (condition?)
    TODO()
end loop

分支逻辑：

plaintext
1
2
3
4
5
6
7
if (condition?) then
    TODO()
else if (condition?) then
    TODO()
else
    TODO()
end if

数组管理：

plaintext
1
2
3
4
arr = new array()                     // set a new array
arr = [..., ..., ...]                 //set values for the array
arr[...]                              //returns the value of a certain index
arr.Length()                          //returns the length of an array(for some reason this could not run on the above website)

集合管理：

plaintext
1
2
3
4
5
6
coll = new collection()               //set a new collection
coll.addItem(certain things)          //add something to the collection
coll.getNext()                        //return the next value
coll.resetNext()                      //go back to the start of the collection
coll.hasNext()                        //returns a boolean value that indicates whether it has next item or not
coll.isEmpty()                        //returns a boolean value that indicates whether the collection is empty or not

栈管理：

plaintext
1
2
3
4
5
// One thing to be remember, first in last out
stack = new stack()                   //set a new stack
stack.push(certain things)            //push an item into the stack
stack.pop()                           //returns the last item of the stack
stack.isEmpty()                       //returns a boolean value that indicates whether the stack is empty or not

队列管理：

plaintext
1
2
3
4
5
// Another thing to remember, first in first out
queue = new queue()                   //set a new queue
queue.enqueue(certain things)         //put an item to the end of the queue
queue.dequeue()                       //delete and return the front item of the queue
queue.isEmpty()                       //returns a boolean value that indicates whether the queue is empty or not

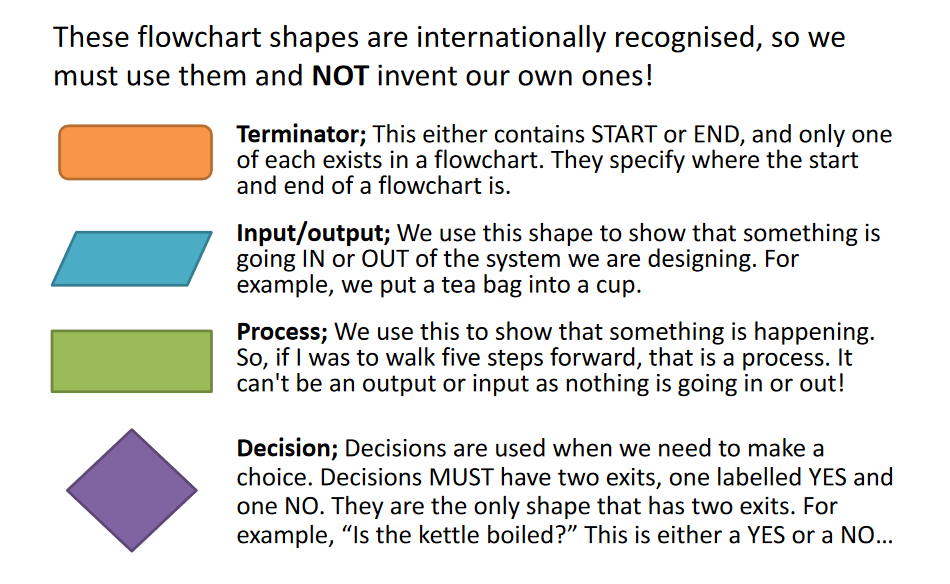

流程图画法

Then use arrows to link the blocks.

简单代码的伪代码实现

The following codes are all based on arrays. Searching/Sorting other form of data set need to do simple modifications to the code.

plaintext
1
2
3
4
5
6
7
8
9
arr = [5, 6, 3, 4, 2, 7, 8, 1]

loop i from 0 to 7
   if (arr[i] == 2) then
      index = i
   end if
end loop

output "The index of number 2 is: ", index
plaintext
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
arr = [5, 6, 3, 4, 2, 7, 8, 1]

loop i from 0 to 6
   min_idx = i
   loop j from i+1 to 7
      if arr[j] < arr[min_idx] then
         min_idx = j
      end if
   end loop
   if NOT(min_idx == i) then
      TEMP = arr[min_idx]
      arr[min_idx] = arr[i]
      arr[i] = TEMP
   end if
end loop
//Sort the array first since binary search is only applicable in ordered series

low = 0
high = 7
found = -1
loop while found = -1 AND low <= high
   mid = div(low + high, 2)
   if (arr[mid] = 8) then
      found = mid
   else if (arr[mid] < 8) then
      low = mid + 1
   else
      high = mid - 1
   end if
end loop

if found >= 0 then
   output "The index of number 8 is: ", found
else
   output "Number was not found"
end if

Bubble Sort

plaintext
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
arr = [5, 6, 3, 4, 2, 7, 8, 1]

loop i from 0 to 6
   loop j from 0 to 6-i
      if arr[j] > arr[j+1] then
         TEMP = arr[j+1]
         arr[j+1] = arr[j]
         arr[j] = TEMP
      end if
   end loop
end loop

loop i from 0 to 7
   output arr[i]
end loop

Selection Sort

plaintext
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
arr = [5, 6, 3, 4, 2, 7, 8, 1]
loop i from 0 to 6
   min_idx = i
   loop j from i+1 to 7
      if arr[j] < arr[min_idx] then
         min_idx = j
      end if
   end loop
   if NOT(min_idx == i) then
      TEMP = arr[min_idx]
      arr[min_idx] = arr[i]
      arr[i] = TEMP
   end if
end loop

loop i from 0 to 7
   output arr[i]
end loop

简单算法的流程图实现

Bubble Sort

Selection Sort
